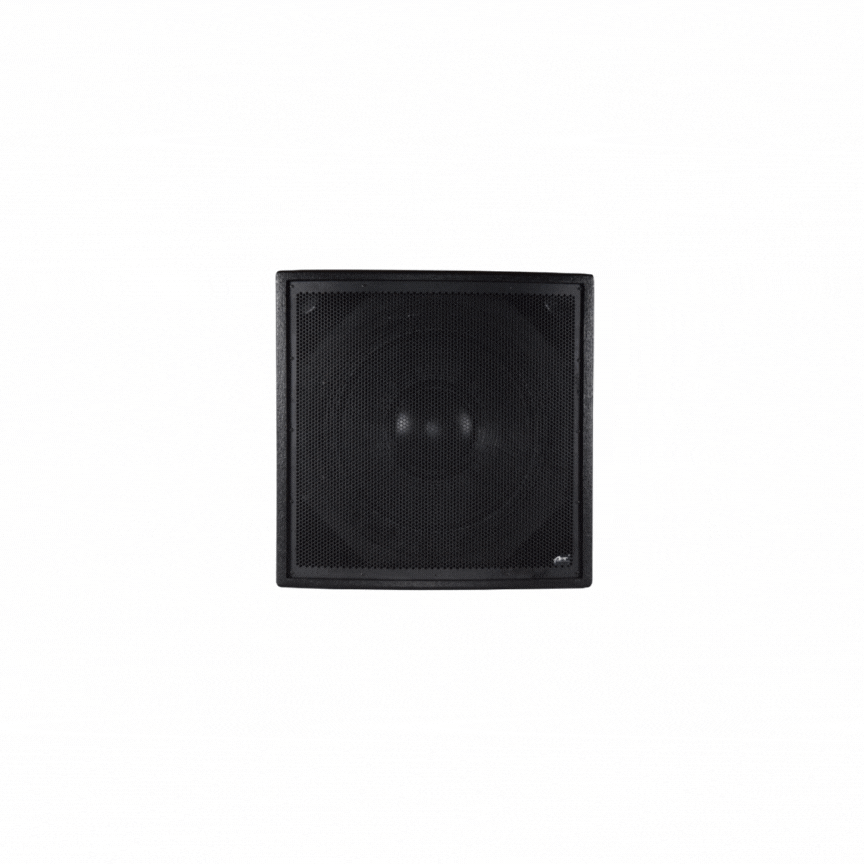

Apt SC 18.1MK2 Sub cabinet

This High-efficiency bass 18″ cabinet employs direct radiating technology to pack a punch. The SC18.1 is the largest of our sub range with 15.1 and 12.2 as its smaller brothers.

This versatile sub is suitable for use in larger audio systems and spaces and is popular for use in stage and club settings together with mid top/mid high end cabinets to complete the system.

Upgrades: NL8 connector and/or 4 wheels.

Specification
Rated Power:
1600w AES
Recommended Amplifier Power:
2500w RMS
Rated Impedance:
SPL (1w/1m):
96dB
SPL Max:
130dB
Component:
1x 18″ woofer with a 4″ voice coil
IP Rating:
Ip20
Enclosure:
18mm Birch plywood
Finish:
Black, White or custom colour
Carrying:
2 x Corner handles on top, 2 x Dished handles on side
Pole Mount:
35mm Pole mount with M20 Thread
Rubber Feet:
4 x Feet on base
Connectors:
2x Speakon NL4

Frequency Response
Frequency Response:
32Hz – 175Hz
Apt SC 18.1MK2 Sub cabinet - 32Hz – 175Hz

Dimensions
Dimensions (HDW):
567, 762, 560mm
Weight:
35kg
Apt SC 18.1MK2 Sub cabinet - 567, 762, 560mm

Optional Extras
4 x Wheels
Tour Grade Handle Set
Binding Post Connectors
NL8 Connectors

Recommended Settings & Accessories
Recommended Crossover Settings:

25Hz LR 24dB
100Hz LR 24dB
With Top Pack 125Hz LR 24dB

Correction EQ:

63Hz, 3dB, 15Q
