CMA 44

CMA44

Compact cabinets designed for the install & touring market making a great infill or discreet option.



Additional information

Rated Power

140w AES

Rated Impedance

SPL (1w/1m)

103dB

SPL Max

125dB

Component

4 x 4" Ferrite & 1 x 1" Compression

Dispersion

90º x 60º rotatable

Enclosure

12mm Birch plywood

Finish

Black, White or custom colour

Pole Mount

35mm dual position pole mount 0º & 5º tilt

Connectors

2x Neutrik Speakon

Flying Points

4 x M6 Rear (powerdrive 65 bracket), 3 x M10

Dimensions (HDW)

(H)525mm x (W) 143mm x (D) 234mm

Frequency Response

80Hz – 20KHz

Recommended Settings & Accessories

Full Range HPF: 80Hz, LR 24dB

EQ settings:
100Hz, +3.5dB, 1Q
338Hz, -2.5dB, 2.5Q
1.3kHz , -2dB, 5Q
3.8kHz, -1dB, 2Q

With SC208 Sub:
HPF: 49Hz, 48dB Butterworth
LPF: 150Hz, 18dB Butterworth

EQ settings sub:
35Hz, -10dB, 10Q
63Hz, +2dB, 6Q
130Hz, -5.6dB, 8Q

Top pack:
HPF: 149Hz, 12dB Butterworth

EQ settings top:
281Hz, +3dB, 1Q
1.3kHz, -2dB, 5Q
3.8kHz, -1dB, 2Q

Frequency Response Graph

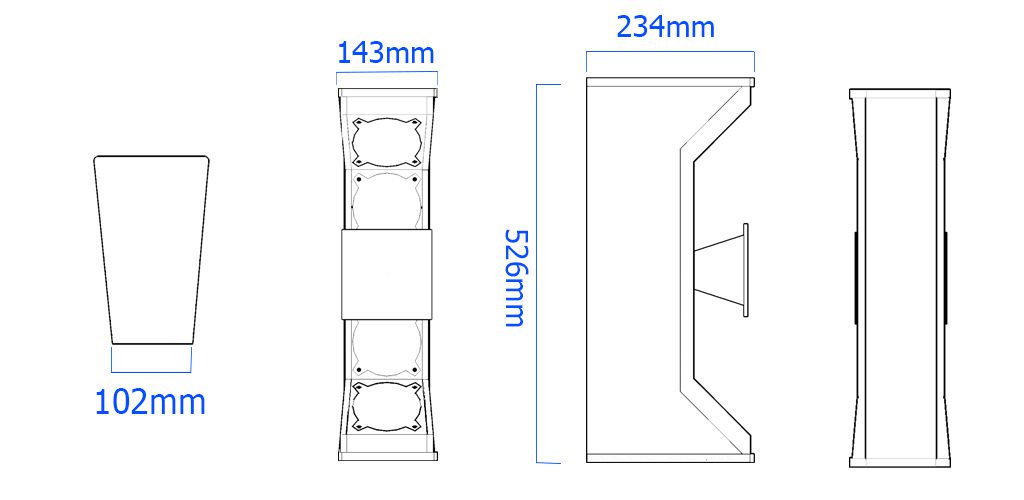

Product Sketch
