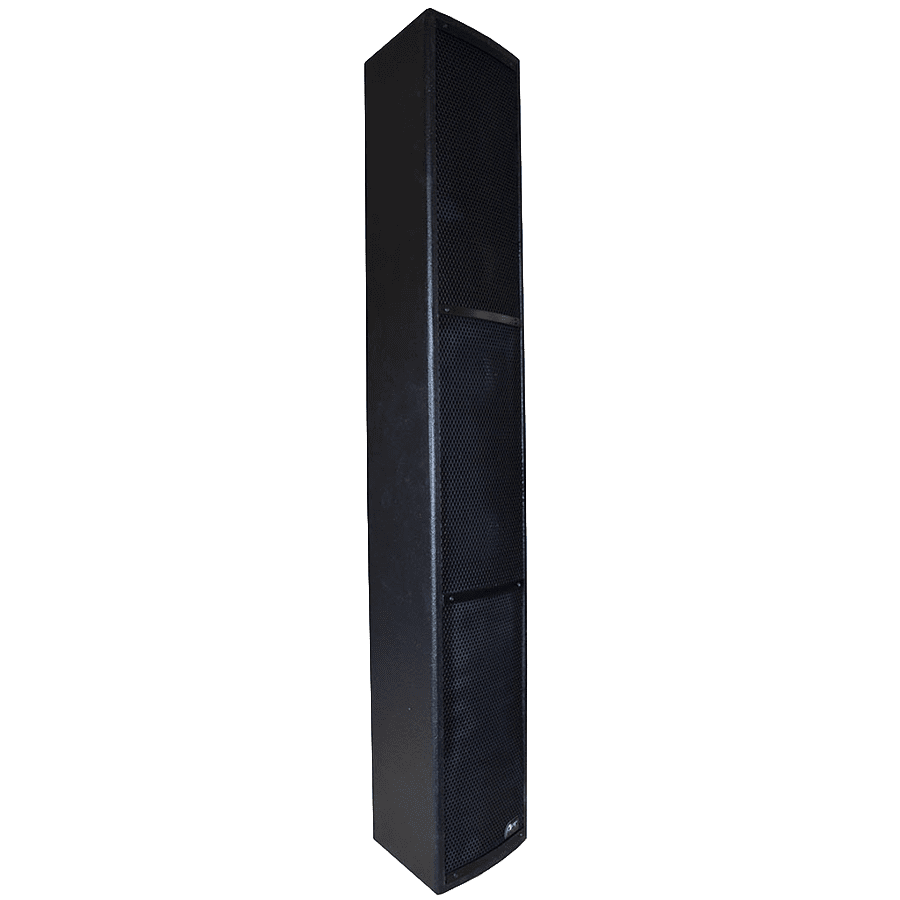

CLF564

CLF564 Asymmetrical Column Array

CLF564 uses 6x high output 5″ woofers and 4x 0.5″ HF in an asymmetrical ported design, giving you a wide frequency band of audio reproduction paired with a high output and efficiency.

This gives the Apt-CLF564 a unique dispersion pattern with an asymmetrical output thus giving you the best audio quality at long or short throw listing points, plus smooth SPL levels.



Additional information

Rated Power

450w AES

Rated Impedance

SPL (1w/1m)

102dB

SPL Max

128dB

IP Rating

IP20

Component

6x 5" woofer and 4x 0.5" HF

Enclosure

12mm Birch Plywood

Wedge Angle

10º

Finish

Black, White or custom colour

Pole Mount

M20 pole mount

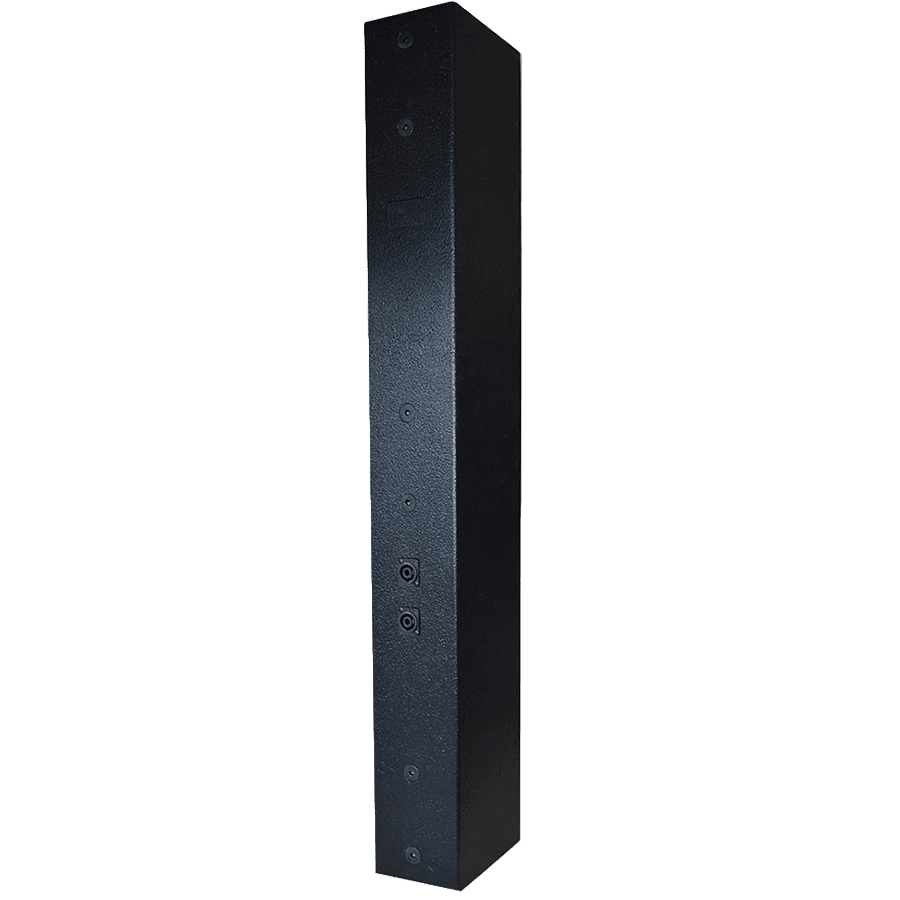

Connectors

2x Speakon NL4

Flying Points

7x M10 for use with Powerdrive 75 brackets

Dimensions (HDW)

1000, 165, 155mm

Weight

13kg

Frequency Response

60Hz – 20KHz

Recommended Settings & Accessories

Recommended Crossover Settings Full Range – 60Hz 24dB LR Filter
With 12″ or 15″ Sub – 125Hz 24dB LR Filter
With 18″ Sub – 90Hz 24dB LR Filter
Correction EQ +3dB 91Hz 2Q
-3dB 6Khz 6Q

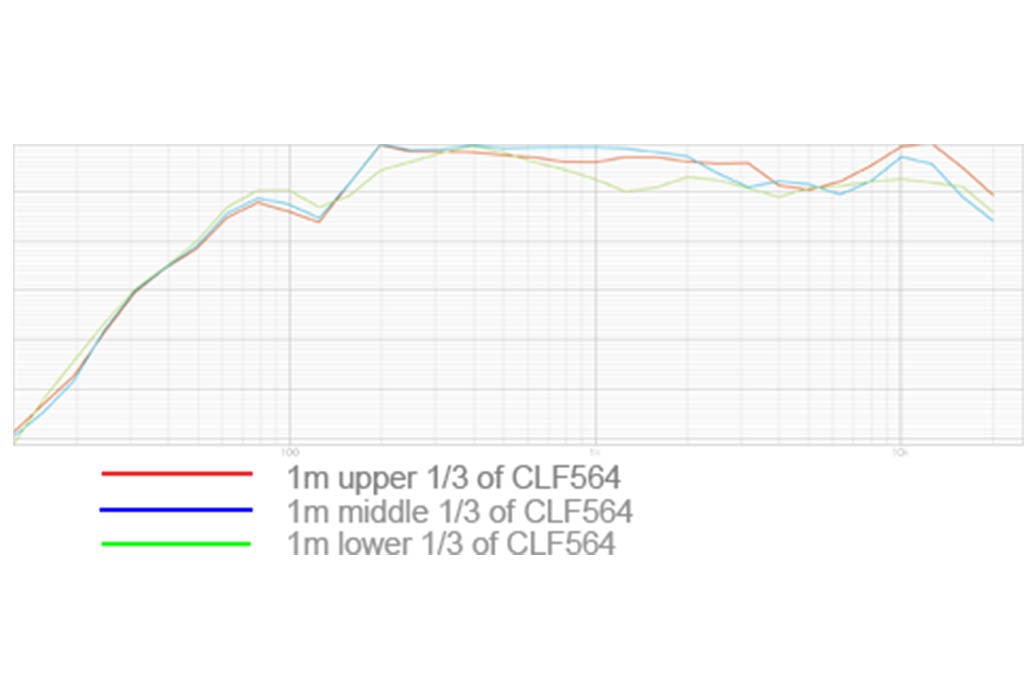

Frequency Response Graph

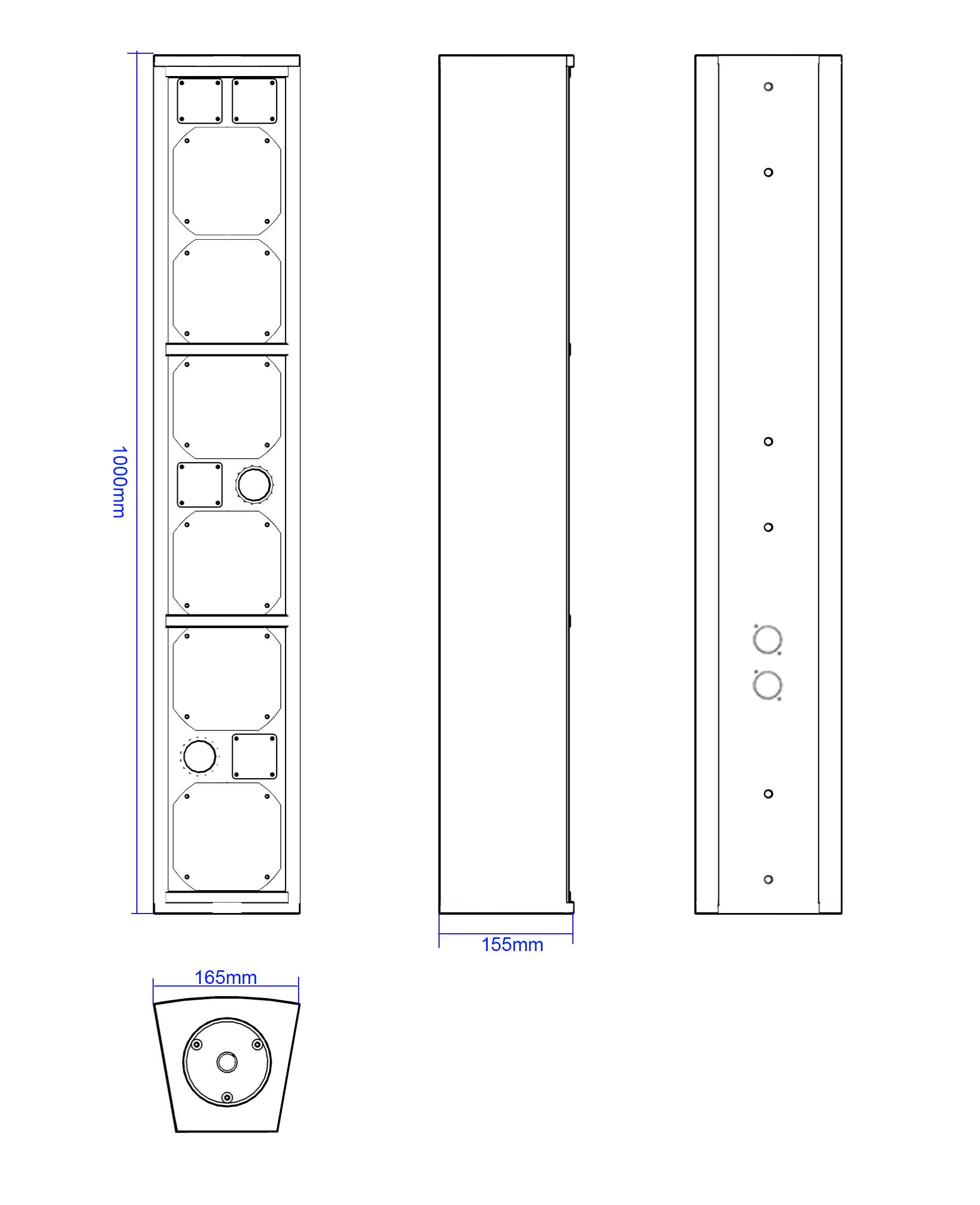

Product Sketch

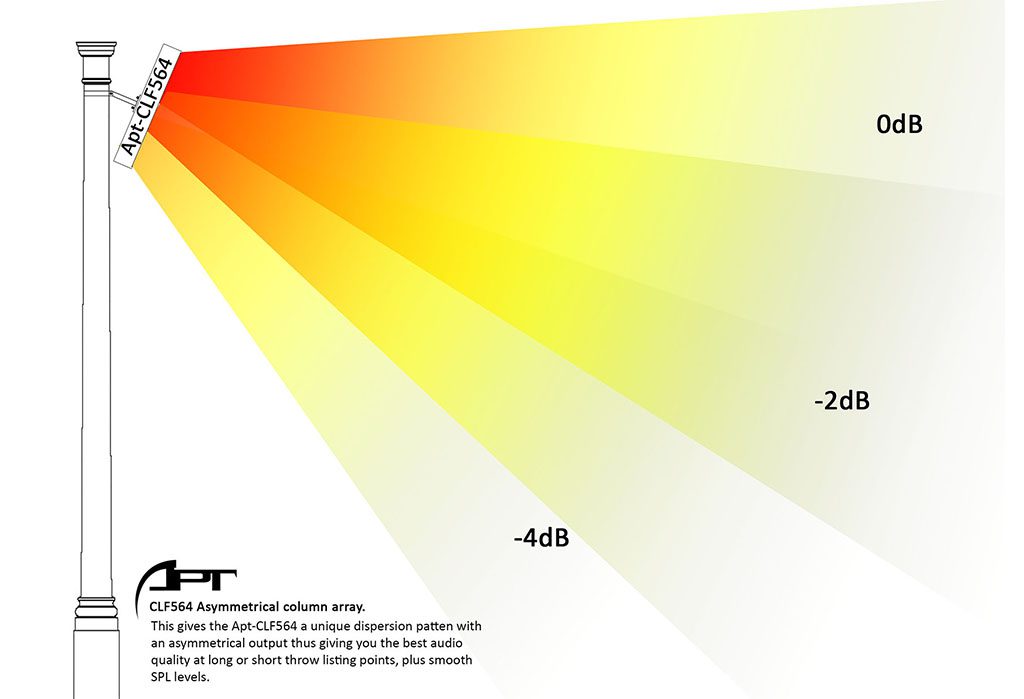

Dispersion
