CLF532

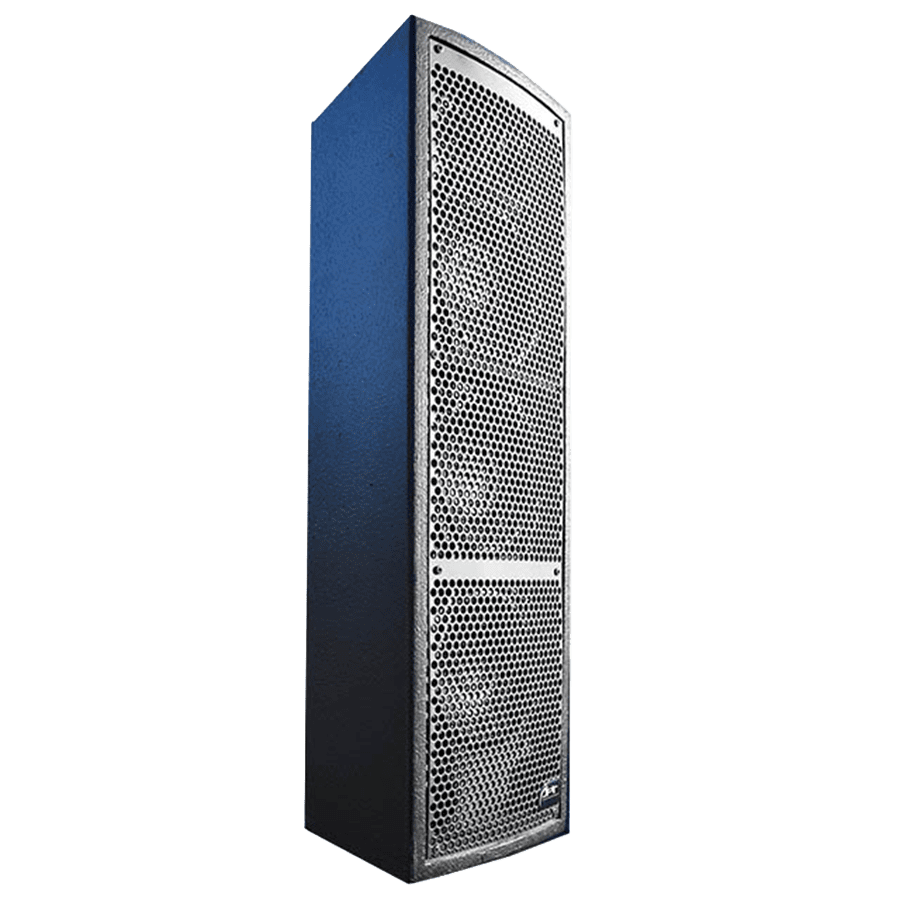

CLF532 Ultra compact full range triple 5″ cabinet

One of the ultra-compact high-efficiency full range CLF rage cabinets with a triple 5″ woofer and 0.5″ HF



Additional information

Rated Power

250w AES

Rated Impedance

SPL (1w/1m)

94dB

SPL Max

118dB

IP Rating

IP20

Component

3x 5" woofer and 2x 0.5" hf

Enclosure

12mm Birch Plywood

Wedge Angle

10º

Finish

Black, White or custom colour

Pole Mount

M20 tophat

Connectors

2x Speakon NL4

Flying Points

Powerdrive 75 on rear

Dimensions (HDW)

535, 155, 165mm

Weight

6kg

Frequency Response

65Hz – 20KHz

Recommended Settings & Accessories

Recommended Crossover Settings Full Range – 60hz 24dB L/R Filter.
With 12″ or 15″ Sub – 125hz 24dB L/R Filter.
With 18″ Sub – 100hz 24dB L/R Filter.
Correction Eq +3dB – 91hz
-3dB 6Khz 6Q

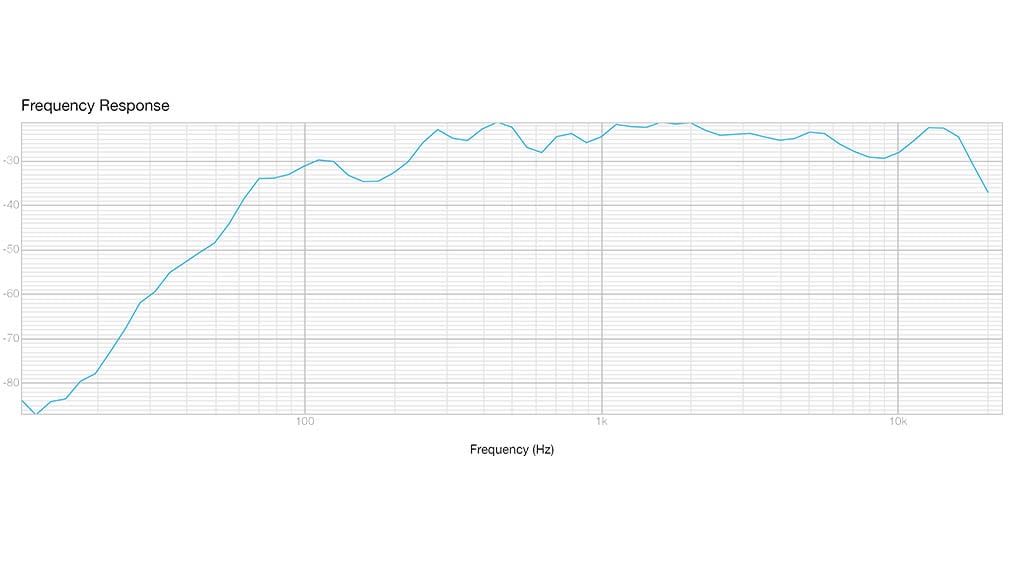

Frequency Response Graph

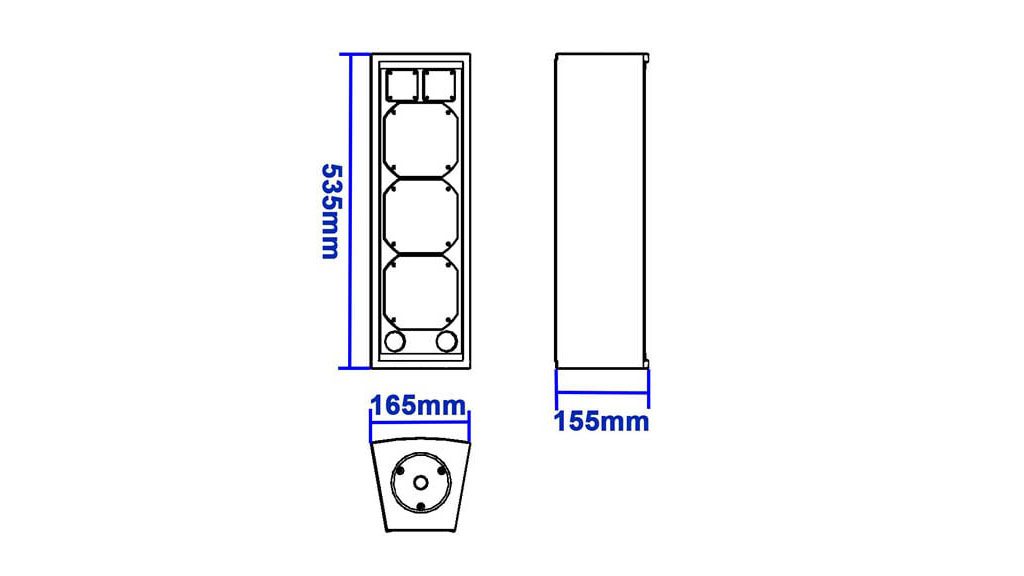

Product Sketch
