TB1281 MK2

Apt-TB1281 MK2 (Horn loaded medium throw)

The Apt-TB1281 horn loaded medium throw cabinet with a flat non-aggressive sound reproduction and high output has a wide range of applications. Hugely popular as a touring product and for live DJ sets, this cabinet is suitable for smaller venues whilst also being scalable (in pairs) for use in larger settings.

This high output cabinet packs a punch for its size and produces flat, non-aggressive sound reproduction allowing for minimal correction time straight out of the box.

Apt-TB121 Mk2 is cross-compatible across the audio range and works beautifully with our amplifier and 2 x SC18.1 Subwoofers to create an all-round system. If you prefer to add this cabinet to your existing system, industry standard Neutrik connections will make it a breeze.

Manufactured using high grade birch ply-wood and quality components, the Apt-TB1281 is built to last.

Optional items shown in pictures not included with base product

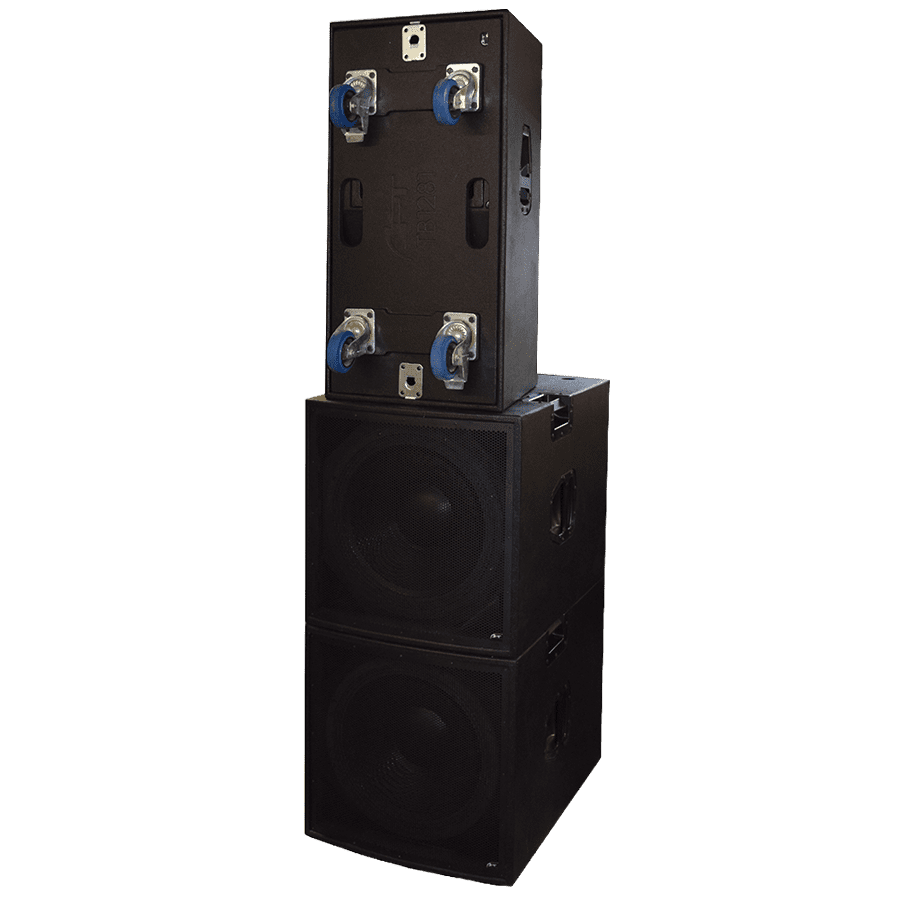

** Please note Images show Wheel Board this can be purchased as an optional Extra.



Additional information

Rated Power

Horn loaded 700w AES low mid (12" woofer 3" coil)
Horn loaded 250w AES high mid & 50w 1.4" HF

Rated Impedance

8Ω on all drivers

SPL (1w/1m)

101dB low mid
104dB high mid & HF

Dispersion

V40º x H60º

Enclosure

15mm Birch plywood – Metal Grill Optional

Finish

Black, White or custom colour

Carrying

Metal Handles on either side of box, Metal Corner handles on top and bottom of box

Flying Points

16 x M10 bolt points

Dimensions (HDW)

900, 480, 430mm

Weight

30kg

Frequency Response

20Hz-20kHz ±0.5dB

Optional Extras

NL8 Connectors
Protective Metal Grill
Wheel Board
Tilt Board

Recommended Settings & Accessories

Crossover Settings SC18.1: 35Hz Butt 24dB – 100Hz Butt 12dB
Crossover Low Mid ±1: 100Hz Butt 18dB – 400Hz Butt 18dB
Crossover high mid + HF ±2: 400Hz Butt 12dB – Out
Time Correction Sub: 0.583ms
Low Mid: 0.0ms
High Mid & HF: 0.437ms
EQ Settings 18.1khz High Shelf +2dB
3khz -3dB 5Q
61hz +2dB 10Q
41hz +3dB 5Q

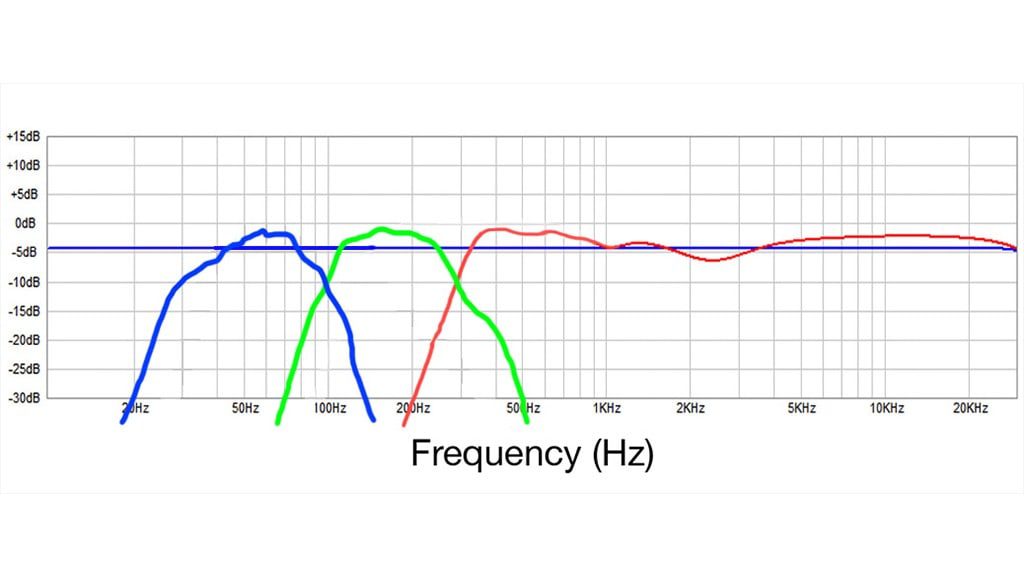

Frequency Response Graph

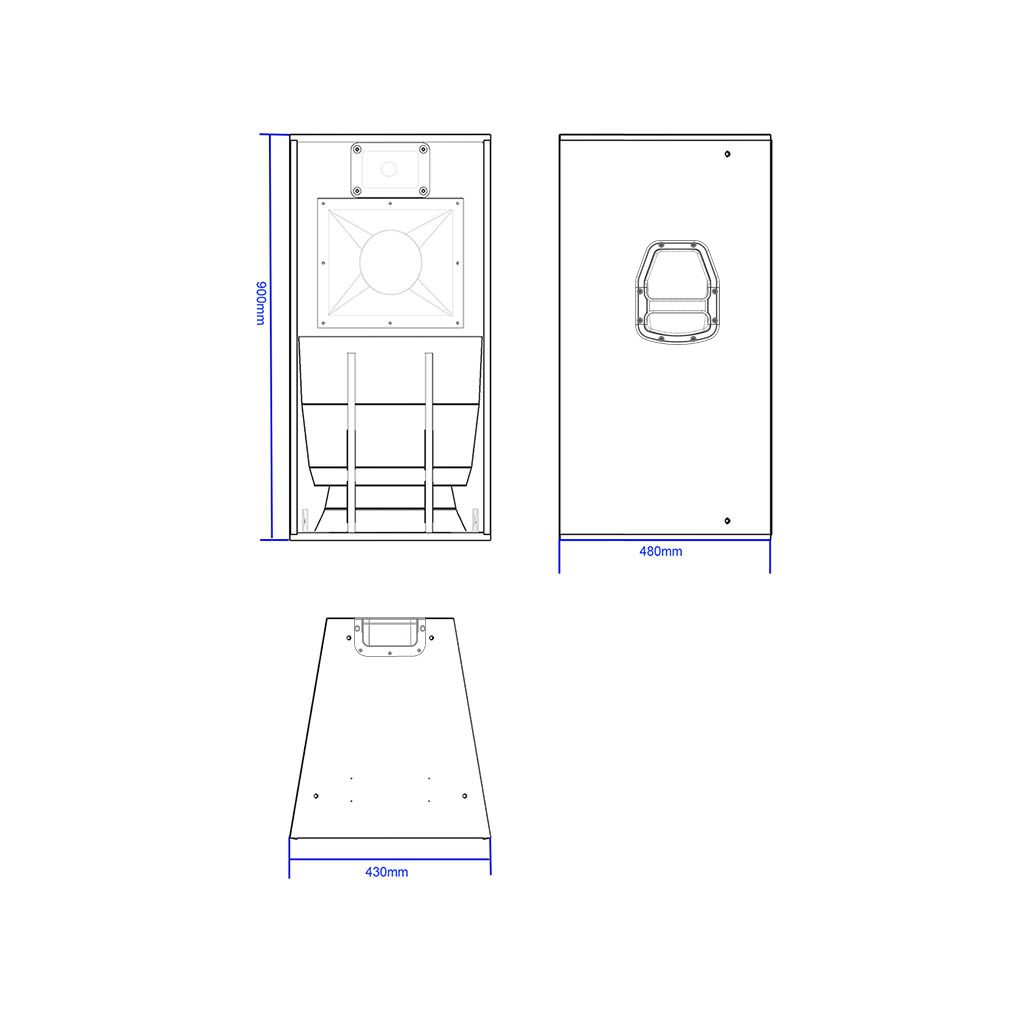

Product Sketch
