SMA-15

Apt-SMA-15 Passive Stage Wedge

High efficiency multipurpose 15″ coaxial wedge monitor with a 2.5″ HF

Additional information

Rated Power

600w AES

Rated Impedance

SPL (1w/1m)

97dB

SPL Max

126dB

Component

1x 15" Neodymium cast woofer with a 3.38" coil & 1x 2.5" compression driver

IP Rating

Ip20

Wedge Angle

30º

Enclosure

15mm Birch plywood

Finish

Black, White or custom colour

Pole Mount

35mm tophat with M20 pole mount

Connectors

2x Neutrik Speakon

Flying Points

M10

Dimensions (HDW)

415, 600, 550mm

Weight

24kg

Frequency Response

65Hz – 19KHz

Frequency Response Graph

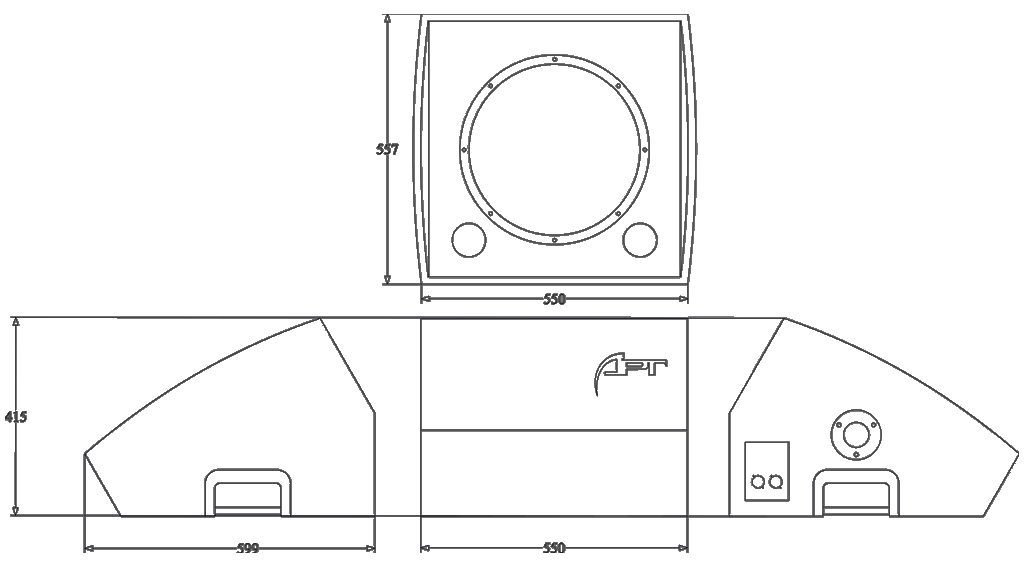

Product Sketch
