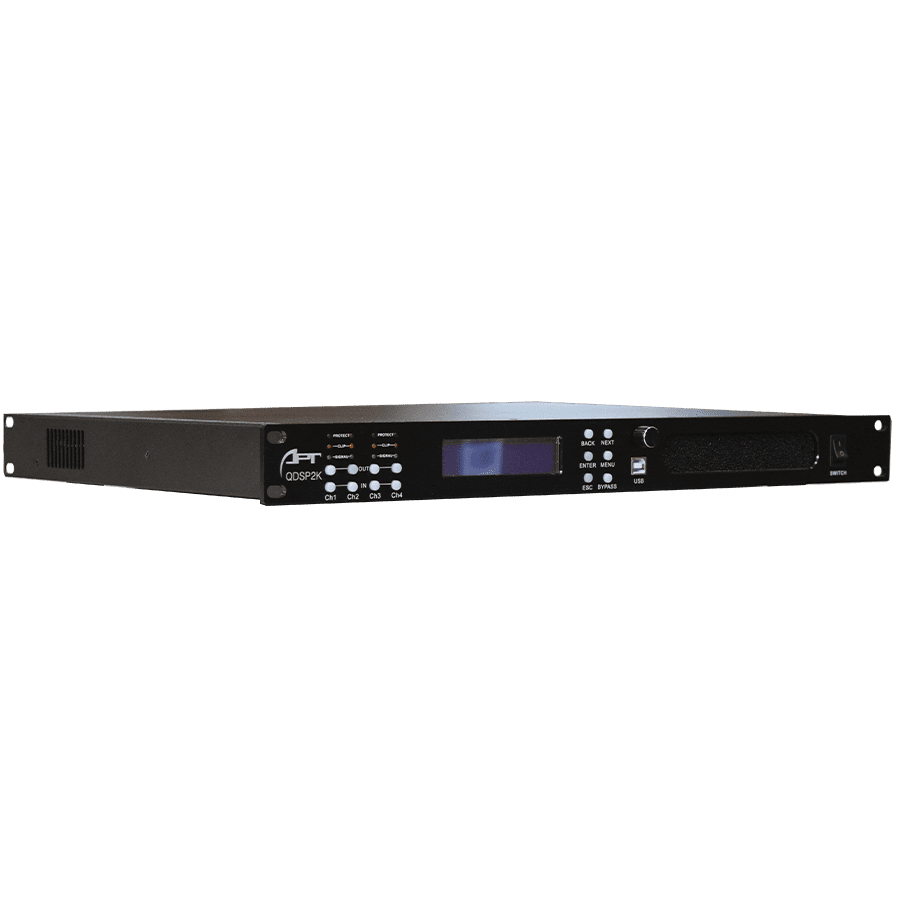

QDSP-2K

Additional information

Rated Power	8Ω – 4 x 250w, 4Ω – 4 x 450w, 2Ω – 4 x n/a, 8Ω Bridge – 2 x 800w, 4Ω Bridge – n/a
DSP	USB, RS485, Ethernet(windows only)
Rated Impedance	8Ω – 4Ω 4 channel, 8Ω Bridge
Enclosure	Steel Chassis
Finish	Black
Connectors	4 x Neutrik Speakon output, 4 x neutrik XLR inputs with 2 x Neutrik XLR Stack out (ch's A & C)
Connectors (Power)	Neutrik Powercon True1 Input
Connectors (Network)	USB-B Front and Rear, RS485 – RJ45 in and out, RJ45 Ethernet
Frequency Response	20Hz-20kHz ±0.5dB
Dimensions (HDW)	483mm x 377mm x 44mm
Weight	5.7kg
Optional Extras	Custom Colour Front Plate

Output Power	8Ω Stereo – 4 x 250w 4Ω Stereo – 4 x 450w 2Ω Stereo – 4 x n/a 8Ω Bridge Mono – 2 x 800w 4Ω Bridge Mono – 2 x n/a
THD+N(Rated power,4Ω/KHz)%	0.10%
SNR(dB)	110dB
Input Impedance	20KΩ Balanced / 10kΩ Unbalanced
Processing	48KHz Sampling frequency, 48-bit Fixed-Point DSP, 24-bit A/D and D/A converter
Dynamic Range	>110dB
Crossover Filter	Butterworth, Bessel, Linkwitz-Riley 20Hz—20KHz, Slope: 12, 18, 24 or 48 dB/octave
EQ	Bandwidth: 0.2 to 36 oct Freq: 20Hz to 20KHz Gain: -24dB to +12dB
Delay	0ms to 115ms
Front Panel	2 x 20 Line LCD Blue backlit, 4 x Input Select/Mute, 4 x Output Select/Mute, Rotary Control Knob + Navigation keys, USB-B port + LED indicators.
Input Power	100 – 120v 50/60Hz 200 – 240v 50/60Hz
