QDSP-10K

Additional information

Rated Power	8Ω – 4 x 1350w, 4Ω – 4 x 2200w, 2Ω – 4 x 2500w, 8Ω Bridge – 2 x 4400w, 4Ω Bridge – 2 x 5000w
DSP	USB, RS485, Ethernet(windows only)
Rated Impedance	8Ω – 2Ω 4 channel, 8Ω – 4Ω Bridge
Enclosure	Steel Chassis
Finish	Black, with Blue front panel
Carrying	2 x handles on front

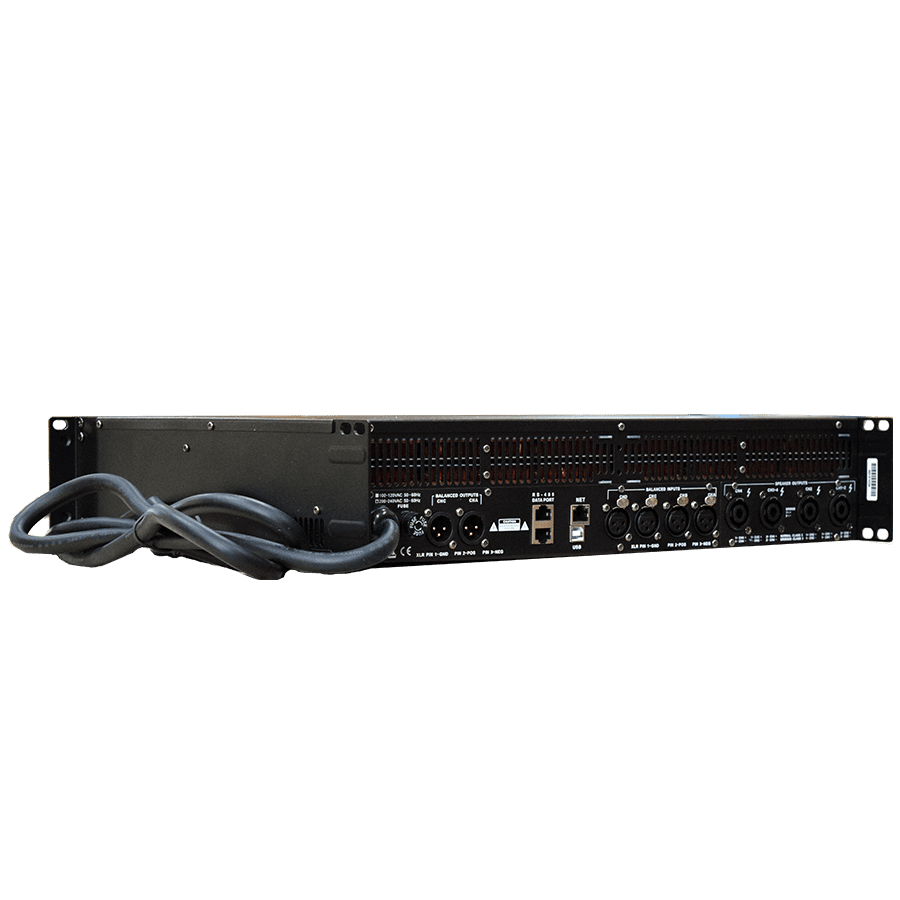

Connectors	4 x Neutrik Speakon output, 4 x neutrik XLR inputs with 2 x Neutrik XLR Stack out (ch's A & C)
Connectors (Power)	Neutrik Powercon True1 Input
Connectors (Network)	USB-B Front and Rear, RS485 – RJ45 in and out, RJ45 Ethernet
Frequency Response	20Hz-20kHz ±0.5dB
Dimensions (HDW)	483mm x 377mm x 88mm
Weight	13kg
Optional Extras	Custom Colour Front Plate

Output Power	8Ω Stereo – 4 x 1350w 4Ω Stereo – 4 x 2200w 2Ω Stereo – 4 x 2500w 8Ω Bridge Mono – 2 x 4400w 4Ω Bridge Mono – 2 x 5000w
THD+N(Rated power,4Ω/KHz)%	0.10%
SNR(dB)	110dB
Input Impedance	20KΩ Balanced / 10kΩ Unbalanced
Processing	48KHz Sampling frequency, 48-bit Fixed-Point DSP, 24-bit A/D and D/A converter
Dynamic Range	>110dB
Crossover Filter	Each output channel can be independently set as LPF and HPF and APF, The parameters can be adjusted, Filter type: Butterworth, Bessel, Linkwitz-Riley; The Crossover Frequency: 20Hz—20KHz, Slope:12,18,24 or 48 dB/octave
EQ	Bandwidth:0.2 to 36 oct, Frequency:20Hz to 20KHz, Gain: -24dB to +12dB, step:0.2 dB
Delay	0ms to 115ms

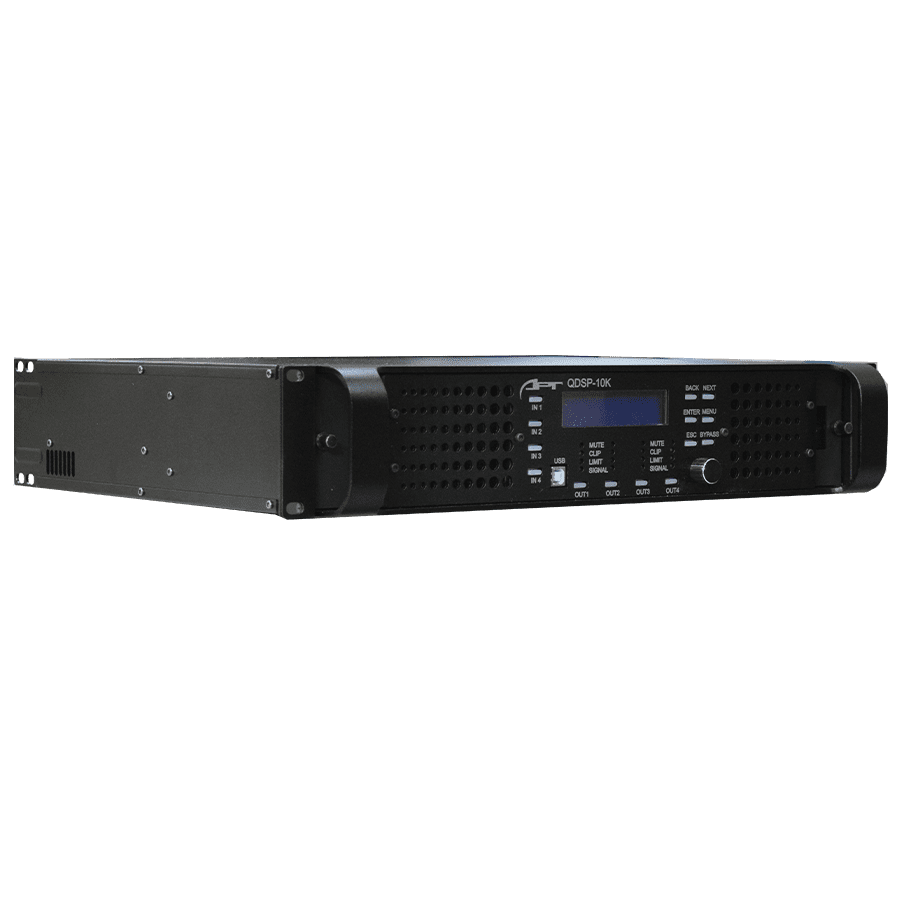

Front Panel	2 x 20 Line LCD Blue backlit with white text, 4 x Input Select/Mute Switch with red LED, 4 x Output Select/Mute switch with red LED, Rotary Control Knob, 6 x navigation keys, MUTE, Clip, Limit & Signal indicators, USB-B port, Power switch with LED.
Input Power	100 – 120v 50/60Hz 200-240v 50/60Hz
