| Rated Impedance | 8Ω – 4Ω 4 channel, 8Ω Bridge |
|---|---|
| Enclosure | Steel Chassis |
| Finish | Black |

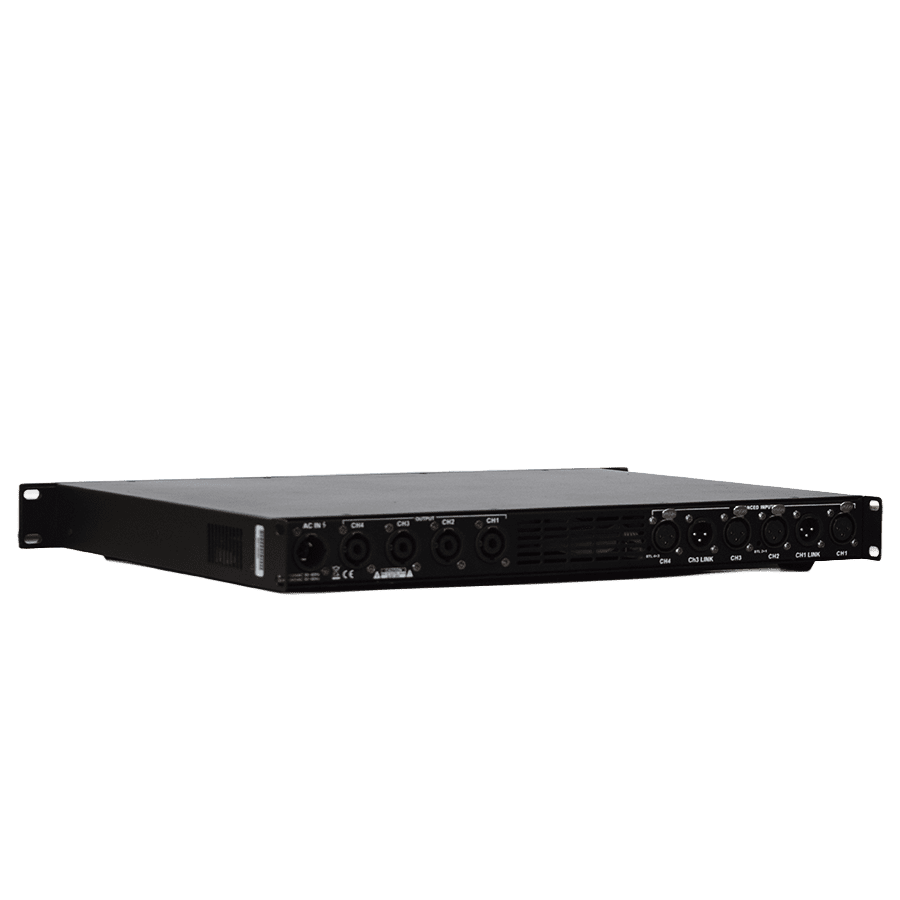

| Connectors | 4 x Neutrik Speakon output, 4 x neutrik XLR inputs with 2 x Neutrik XLR Stack out (ch's A & C) |
| Connectors (Power) | Neutrik Powercon True1 Input |
| Frequency Response | 20Hz-20kHz ±0.5dB |
| Dimensions (HDW) | 483mm x 377mm x 44mm |
| Weight | 5.6kg |
| Optional Extras | Custom Colour Front Plate |
| Output Power | 8Ω Stereo – 4 x 250w 4Ω Stereo – 4 x 450w 2Ω Stereo – 4 x n/a 8Ω Bridge Mono – 2 x 800w 4Ω Bridge Mono – 2 x n/a |
|---|---|
| THD+N(Rated power,4Ω/KHz)% | 0.10% |
| SNR(dB) | 110dB |
|
Input Impedance
|
20KΩ Balanced / 10kΩ Unbalanced |
| Dynamic Range | >110dB |
| Front Panel | Rotary Control Knob, MUTE, Clip, Limit & Signal indicators, Power switch with LED. |
| Input Power | 200-240v 50/60Hz |
