IC10

IC10 Compact Coaxial Cabinet

Compact range of Coaxial Cabinets designed for the Install Market



Additional information

Rated Power

300w RMS

Rated Impedance

SPL (1w/1m)

96dB

SPL Max

121dB

Component

HF 1.4" Polymide, LF 10" Kevlar Paper

Dispersion

100º

Enclosure

12mm Birch Plywood

Finish

Black, White or custom colour

Pole Mount

35mm pole-mount with M20 thread

Connectors

2x Neutrik Speakon or 1x Phoenix

Flying Points

4 x M8 Rear & Side (powerdrive 60 bracket), 8 x M10 points

Dimensions (HDW)

370 x 220 x 245mm

Weight

11kg

Frequency Response

65Hz – 19KHz

Optional Extras

Binding Post Connector
4 Pole Euro block connector

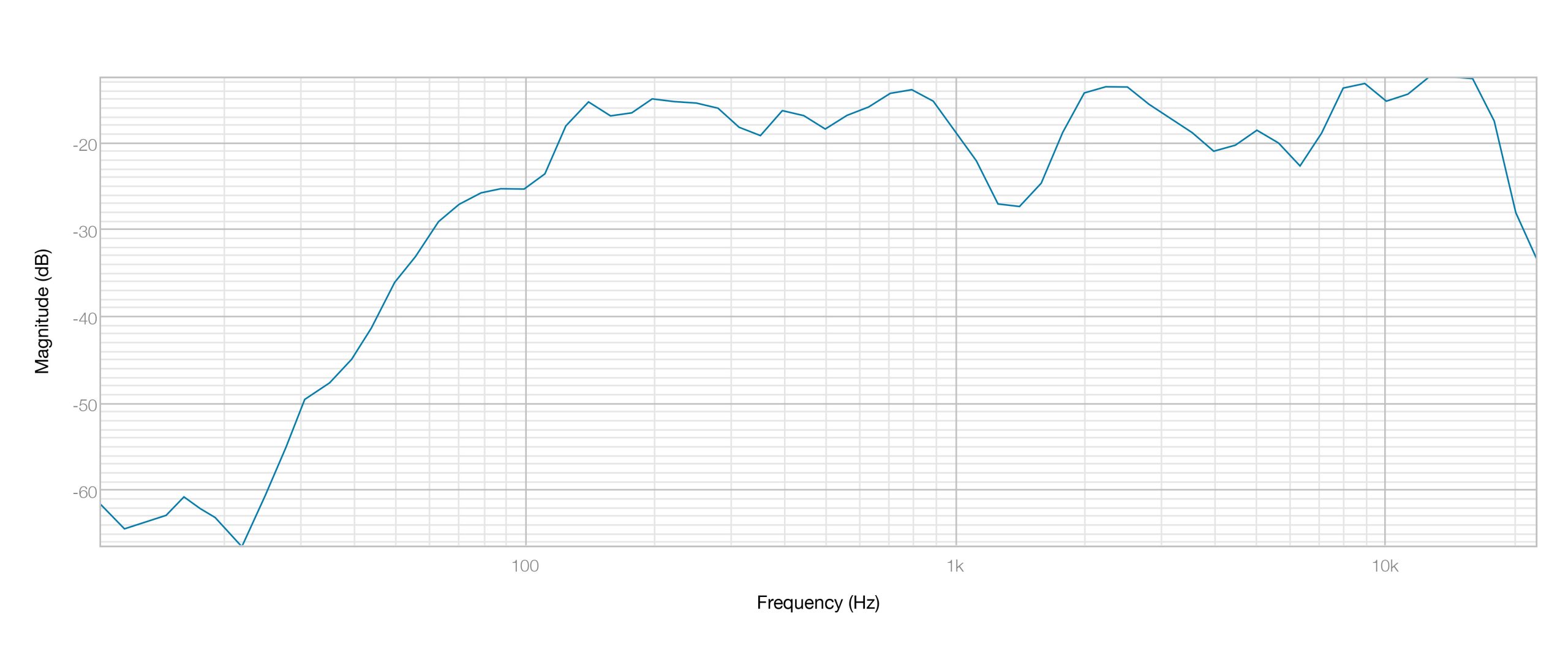

Frequency Response Graph

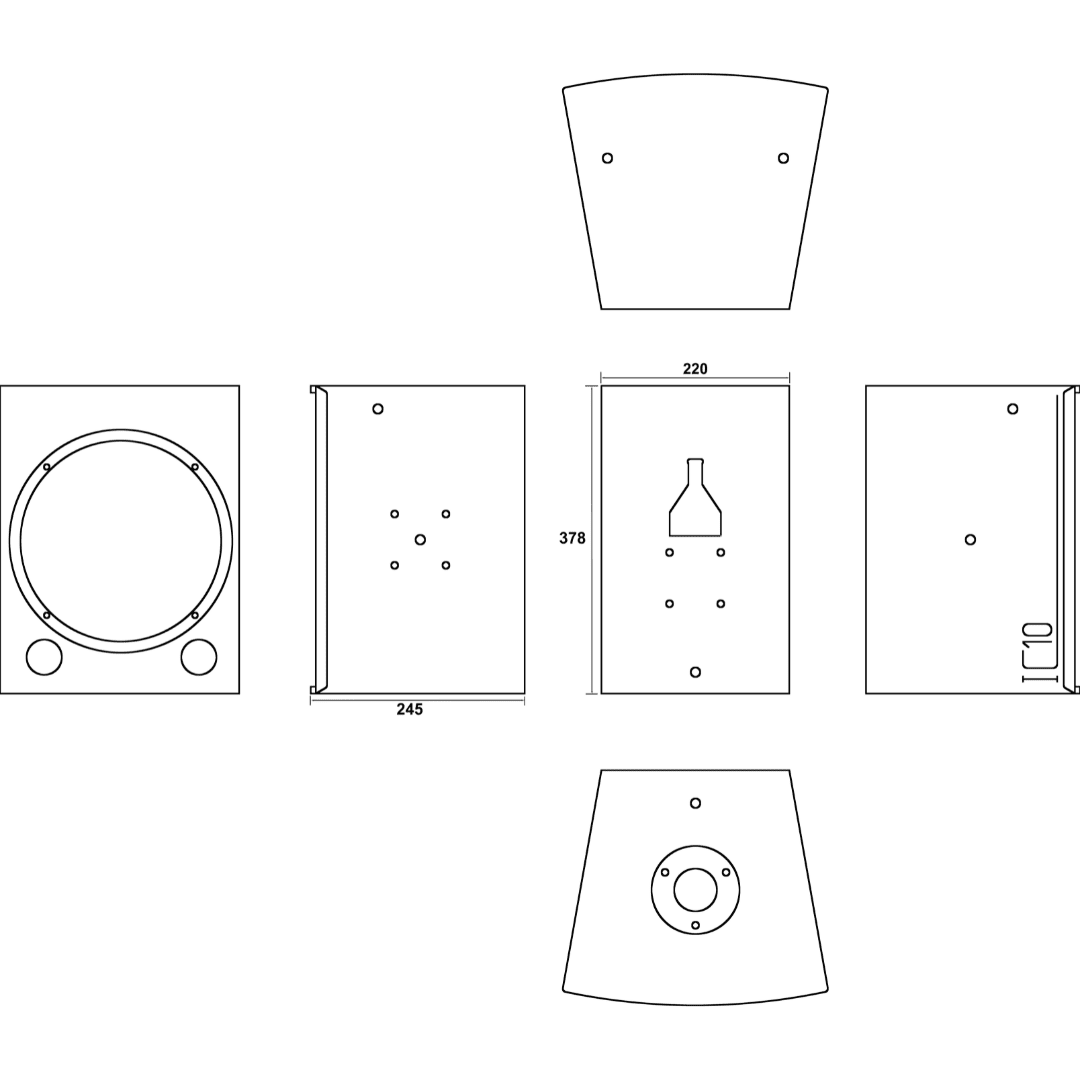

Product Sketch
