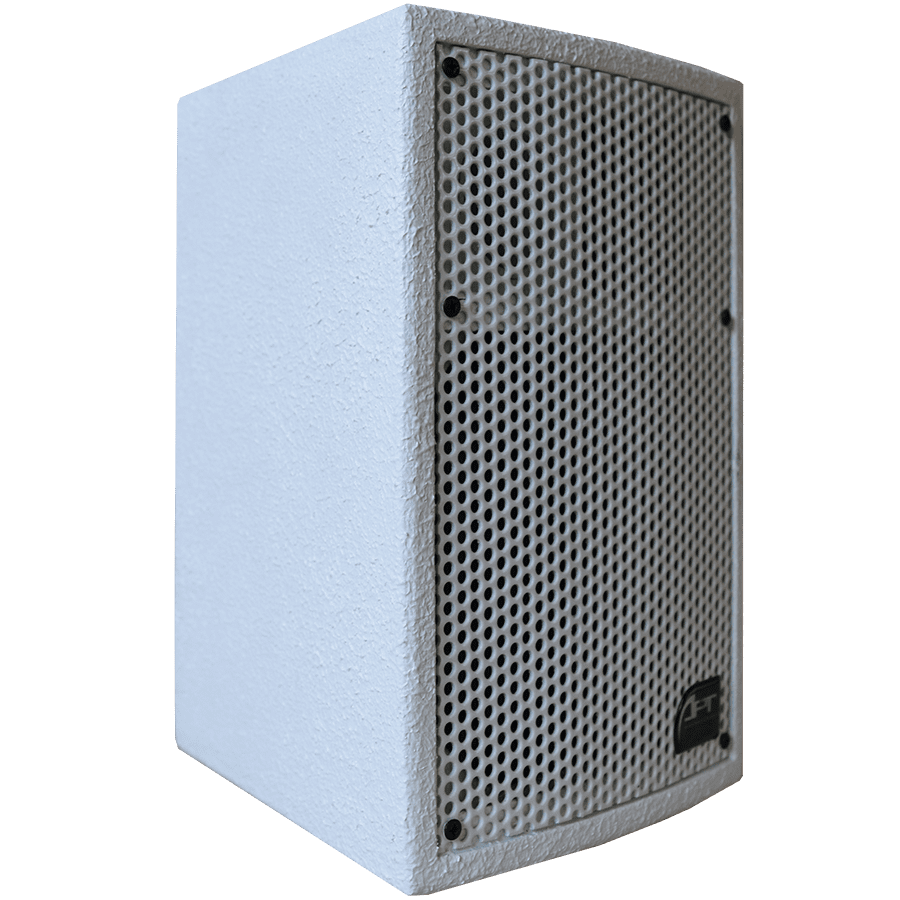

One of the ultra-compact high-efficiency full range CLF range cabinets with a single 5″ woofer and 0.5″ HF
| Rated Power | 80w AES |
|---|---|
| Recommended Amplifier Power | 125w RMS |
| Rated Impedance | 8Ω on all drivers |
| SPL (1w/1m) | 88dB |
| SPL Max | 107dB |
| IP Rating | IP20 |
| Enclosure | 9mm Birch Plywood |
| Finish | Black, White or custom colour |
| Flying Points | 2x M8 bolts for use with Apt-CLF511B included with cabinet |

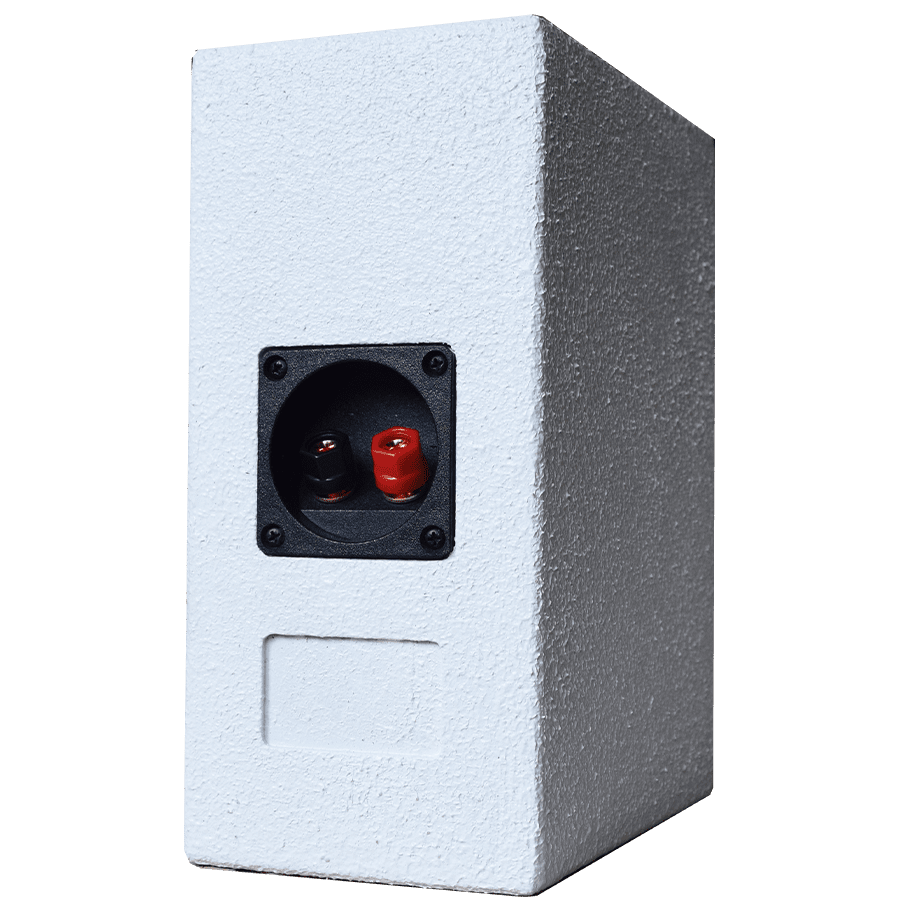

| Connectors | 4mm Binding post |

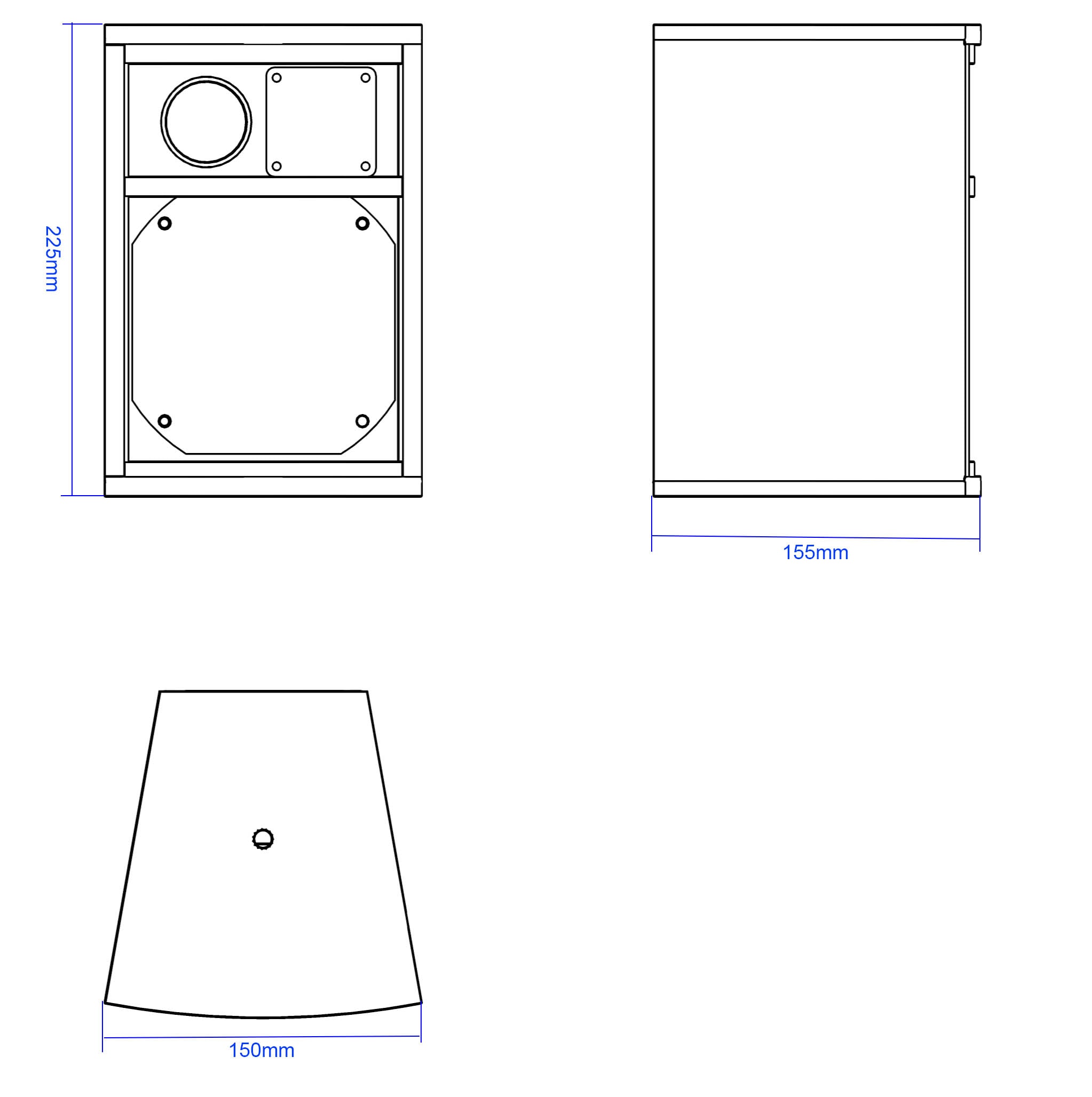

| Dimensions (HDW) | 225, 150, 155mm |
| Weight | 2kg |

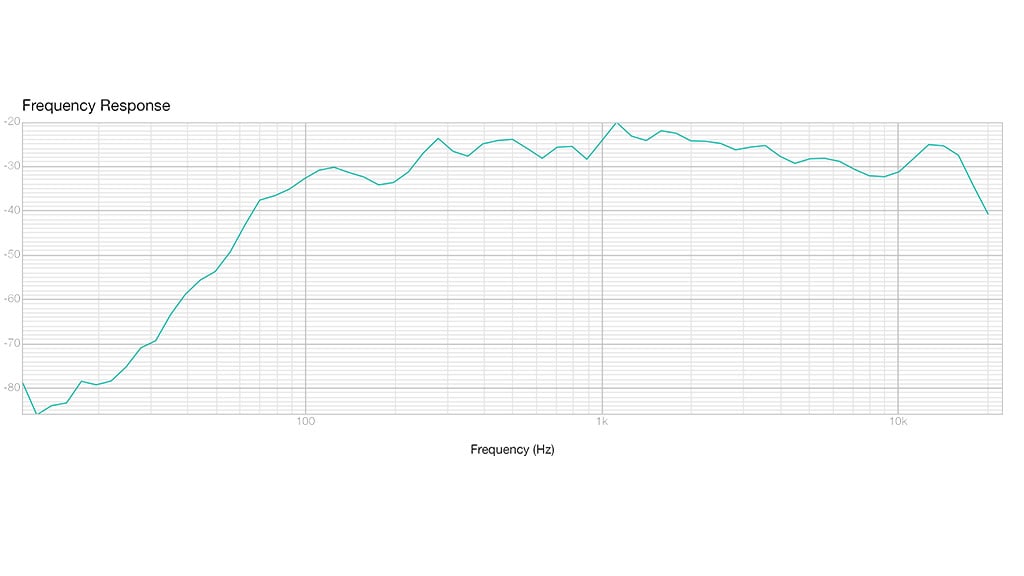

| Frequency Response | 67Hz – 20KHz |
| Recommended Crossover Settings | Full Range – 60hz 24dB L/R Filter With 12″ or 15″ Sub – 125hz 24dBL/R Filter With 18″ Sub 100hz 24dB L/R Filter |
|---|---|
| Correction EQ | +3dB 91hz 2Q -3dB 6Khz 6Q |
