CL4.4

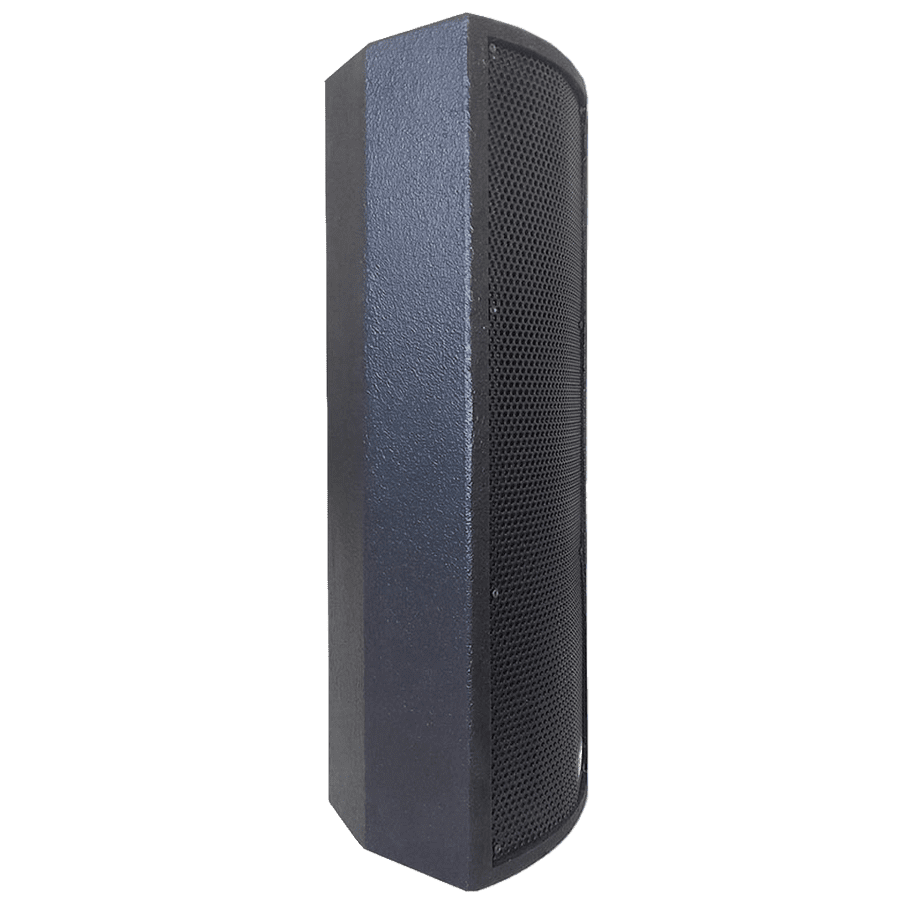

CL4.4 Column Array Speakers

High efficiency column cabinet employs multiple cone speakers arranged vertically on a single baffle board to provide wider horizontal directivity with 4x 4″ driver



Additional information

Rated Power

120w AES

Rated Impedance

SPL (1w/1m)

97dB

SPL Max

118dB

IP Rating

IP20

Component

4x 4" ferrite drivers

Enclosure

12mm Birch Plywood

Dispersion

120º

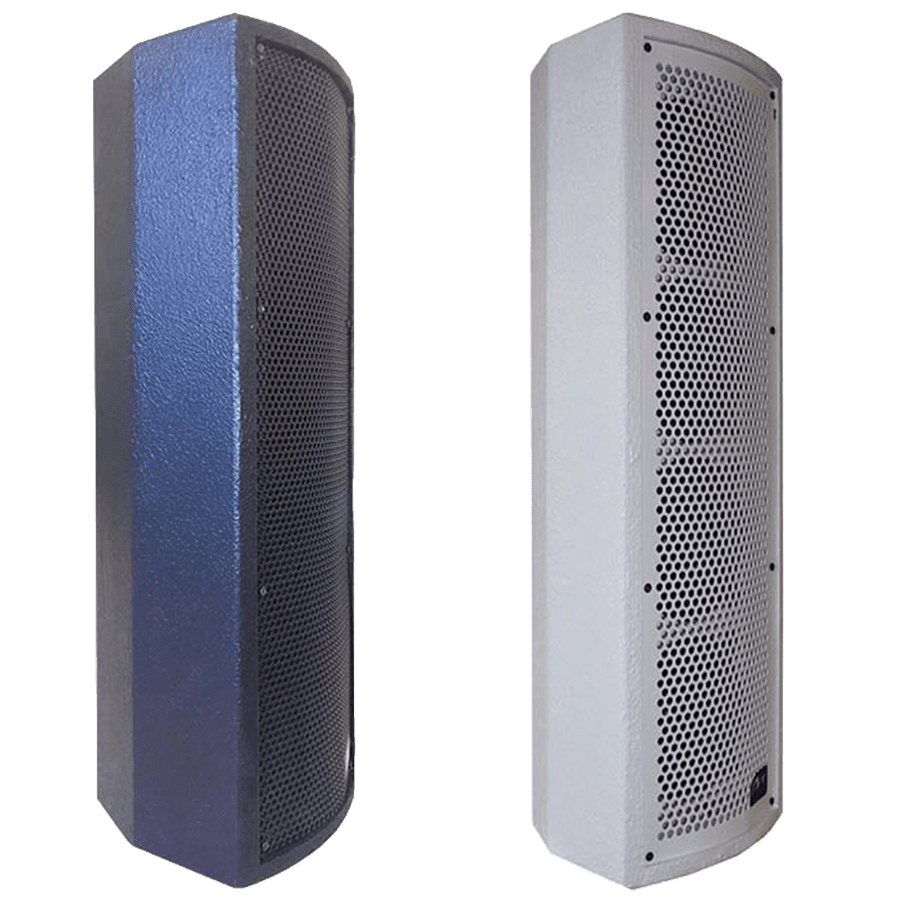

Finish

Black, White or custom colour

Flying Points

2 x M10 points, Powerdrive 75

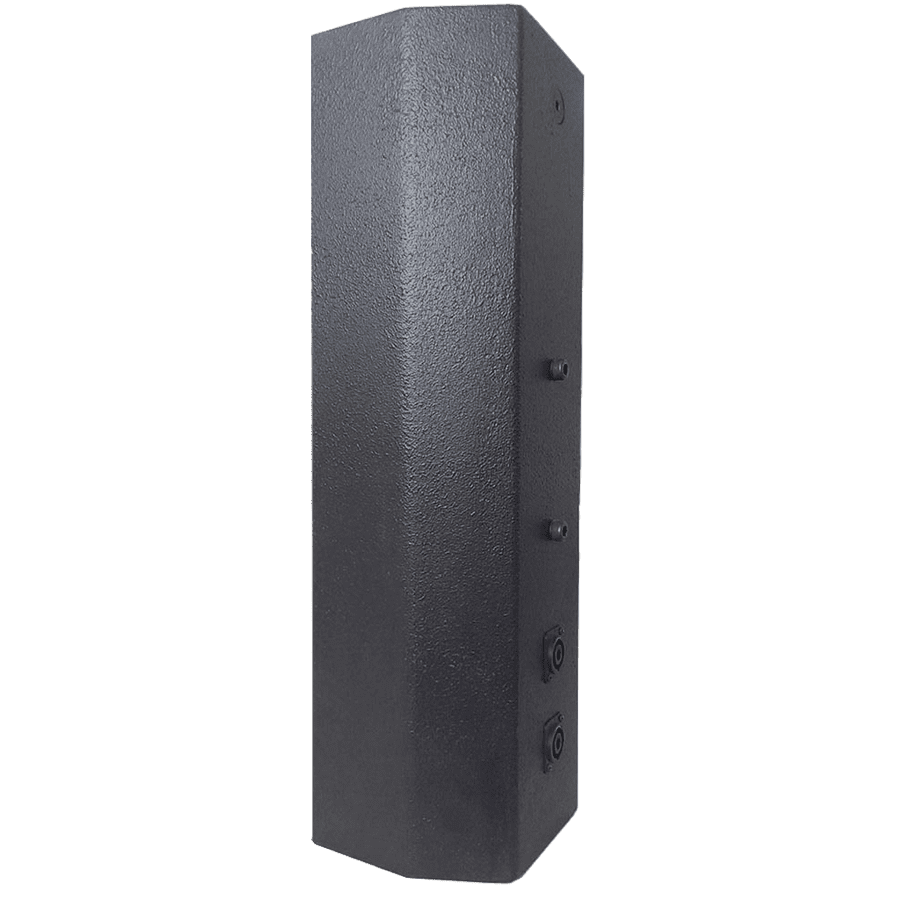

Connectors

2x Speakon NL4

Dimensions (HDW)

495, 150, 155mm

Weight

5.7kg

Frequency Response

125Hz – 20KHz

Optional Extras

2x Neutrik Speakon or binding post

Recommended Settings & Accessories

Recommended Crossover Full Range – 150Hz LR 24dB
With Sub – 150Hz 12dB
Correction EQ High Shelf 8KHz +4db 12Q

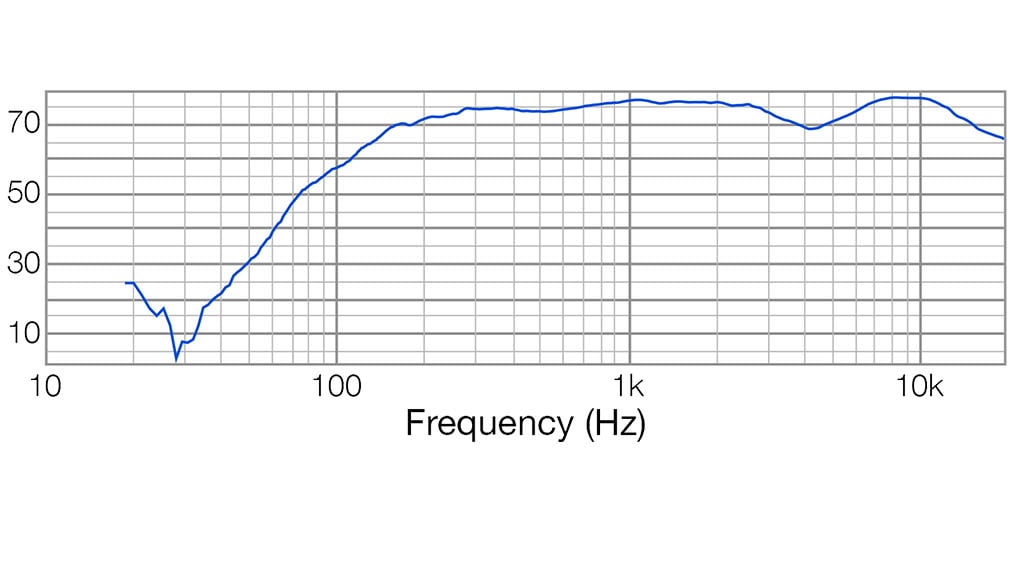

Frequency Response Graph

Product Sketch
